C17300 Beryllium Copper Alloy (Free-Cutting Beryllium Copper)

QR code
Reservation Now
Detail

1. Overview



C17300 is a free-machining beryllium copper alloy (CuBe2Pb) that contains a small amount of lead (Pb). It retains high strength, high hardness, and good electrical conductivity while significantly improving machinability. This precipitation-hardenable copper alloy offers excellent mechanical properties, corrosion resistance, and dimensional stability. It is widely used in industries requiring precision machining and high-strength conductive components, such as electrical contacts, switch blades, and automotive terminals.



2. Standards


  • UNS Number: C17300

  • ASTM Standards: ASTM B196, ASTM B197

  • RWMA Classification: Class 3 (Resistance welding electrode grade)




3. Chemical Composition (wt%)


Element

Content Range

Copper (Cu)

Balance

Beryllium (Be)

1.8 – 2.0%

Lead (Pb)

0.2 – 0.6%

Other Impurities

≤ 0.5%



4. Physical Properties


Property

Value Range

Density

8.25 g/cm³

Melting Point

866 ~ 980 °C

Electrical Conductivity

15–28% IACS (depending on heat treatment)

Thermal Conductivity

105–130 W/m·K

Specific Heat Capacity

0.38 J/g·K

Hardness (HV)

250–380 (aged condition)



5. Mechanical Properties (Typical Values)


Condition

Tensile Strength (MPa)

Yield Strength (MPa)

Elongation (%)

Solution Annealed (A)

400–540

200–250

30–45

Aged (HT)

1000–1310

800–1100

5–10

Note: Actual properties may vary depending on size and processing method.



6. Processing and Heat Treatment


  • Heat Treatment:

    After solution treatment, aging is performed at 290–370°C for 1–3 hours to achieve optimal mechanical properties.

  • Machinability:

    The addition of lead improves chip breaking and tool life, making it suitable for automatic lathes and precision CNC machining.

  • Weldability:

    Suitable for brazing and gas-shielded arc welding; not recommended for oxyacetylene welding.




7. Product Forms

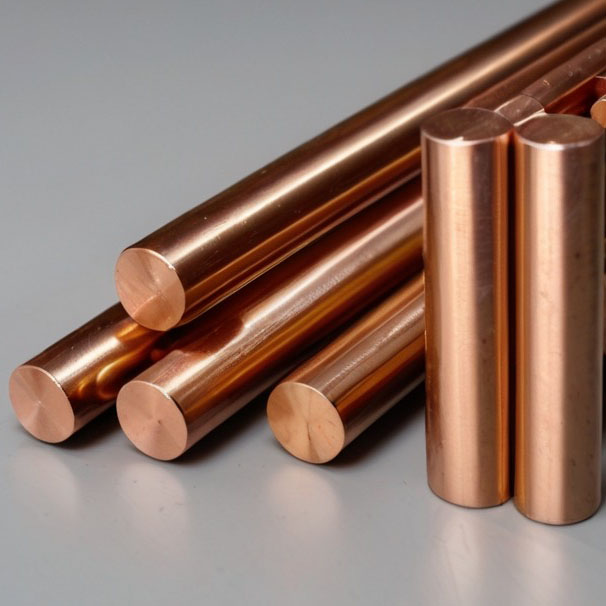

  • Rods, plates, strips, wires, tubes, and custom-shaped components

  • Custom processing available for electrodes, springs, contact pins, connectors, etc., based on drawings




8. Application Fields


  • Electronics & Electrical: Relay springs, plug sockets, contact terminals, wear-resistant terminals

  • Automotive: ABS components, ignition contacts, terminal connectors

  • Aerospace: Circular connectors, contact pins, sensor brackets

  • Mold Making: Inserts for plastic molds, conductive components for hot runner systems

  • Resistance Welding Industry: Electrodes, clamps, locating pins




9. Comparison: C17200 vs. C17300


Feature

C17200

C17300

Lead Content

None

Present (improves machinability)

Machinability

Standard

Excellent

Mechanical Strength

Higher

Slightly lower but easier to machine

Preferred Use

General high-strength applications

Precision and automatic machining components
